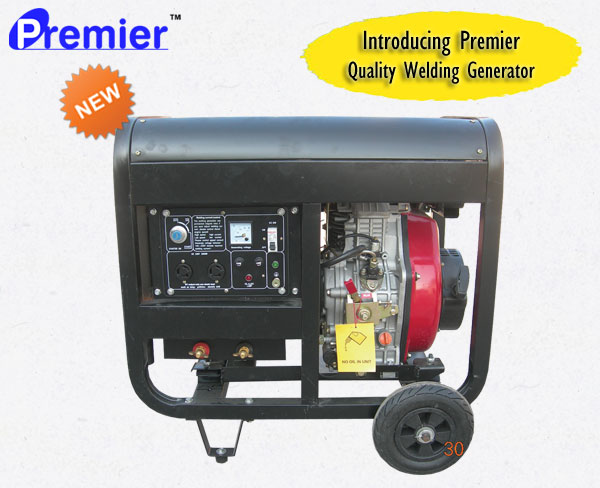

WELDING GENERATORS TE 11000
Premier TE series permanent magnet DC welding generator can be used for different type of welding operations ( Can use SS, MS, 6013, 7018) with high quality welding finish.
The welding output is DC and has characteristics like high quality finish welding beads, Less splatter, east start etc. Also the new permanent magnet rotor greatly improve the reliability of the welding alternator.
Output rectifier designed for long welding durations heavy current. The body strength has also been improved for high durability.
The machine is latest model in our wide range of products; the machine belongs to the FHS series, and upgraded version of the rotor magnet arrangement and an optimized mode of rectifier.
Description |
TE11000SDC | |||||||||
Electrical welding Generator Data |
Generator technical data (AC) | Rated power(KW) | 2 | |||||||
| Voltage (D.C)(V) | 230V | |||||||||
| Phase type | D.C output | |||||||||
| Electric welding Technical Data(DC) | Electrical welding voltage in idle | D.C 60-7-V | ||||||||
| Working voltage for electric welding | D.C 25-30V | |||||||||
| Electric welding load lasting rate | 60% | |||||||||
| Current range of electric welding | 80-230(A) | |||||||||
| Speed (rpm) | 3000/3600 | |||||||||
| Excitation | Permanent-magnet | |||||||||
| Frame way | Open frame steel handcart | |||||||||
| Dry weigh (lbs) | 111 | |||||||||
| Dimensions (LxWxH)(mm) | 740x500x630 | |||||||||
Engine |
Engine model | 186FA(E) | ||||||||
| Output | Continuous (KW) | 6 | ||||||||
| Maximum(KW) | 6.6 | |||||||||
| Borex stroke (mm) | 86x72 | |||||||||
| Displacement (cc) | 418 | |||||||||
| Lube-oil capacity(oz.) | 1.65 | |||||||||
| Fuel tank capacity (US.gal) | 15 | |||||||||
| Lubricating system | Pressure splash,duplex type lubrication | |||||||||
| Starting system | Recoil manual start/Electric start | |||||||||
| Cooling system | Forced air cooling by flywheel fan | |||||||||
